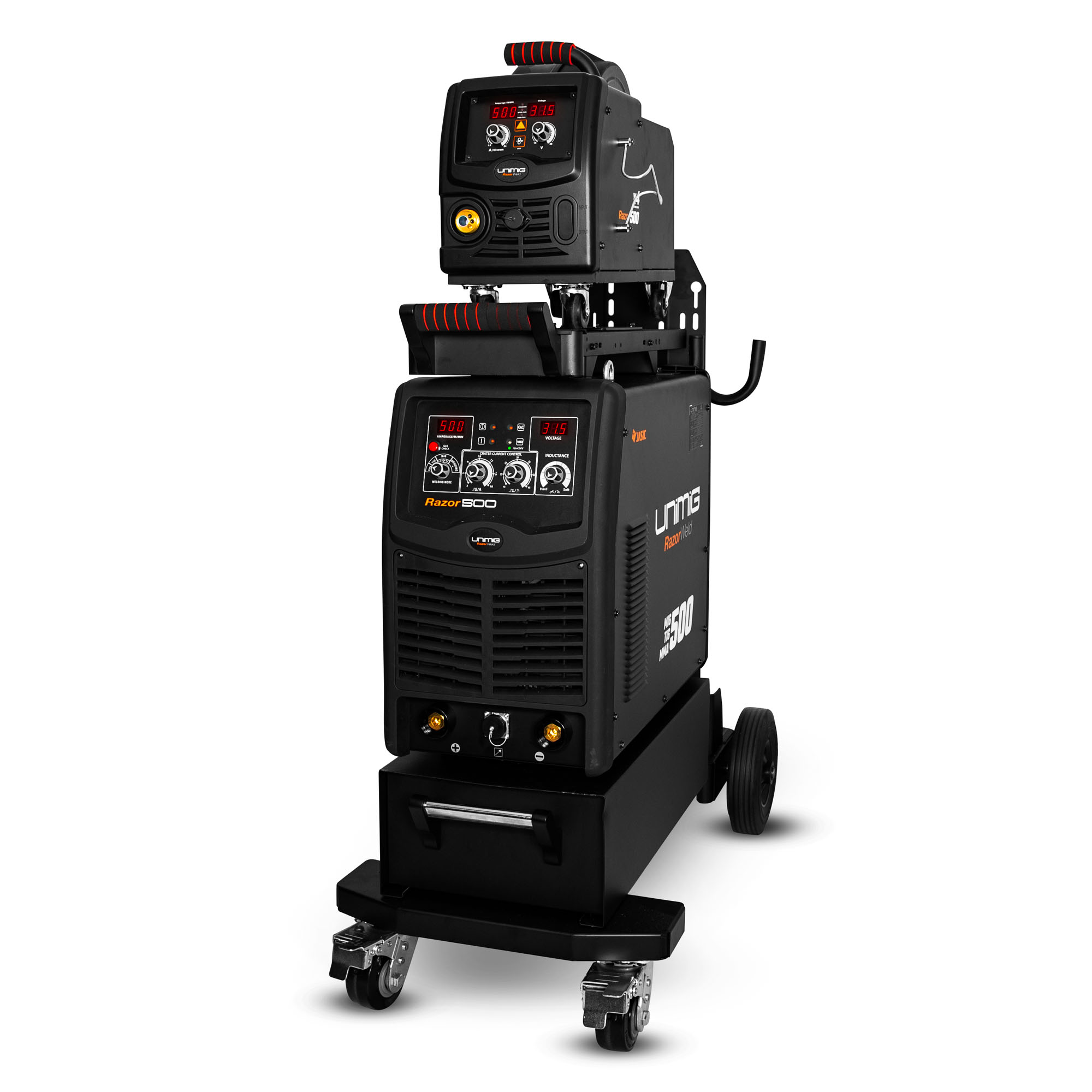

New Unimig RAZOR 500 SWF MIG/TIG/STICK Welder Package
MAKE: Unimig
MODEL: RAZOR 500
In Stock and available for shipping
$4,350 (+GST)*
*Excluding freight
Available for immediate delivery.
Package includes:
- Razor 500 power source
- Wire feeder
- Workshop trolley
- Leads
- Gun and regulator
The RAZOR™ 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra maneuverability in the workshop.
Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZOR™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.
General Specs
- Amperage: 20 A to 500 A
- Stick welding thickness: 2 to 20 mm
- Processes: MIG, TIG, STICK, Air Arc Gouging
- Primary Input Voltage: 415 volt 3-Phase
- Dinse connector: 35/50
Size & Weight (RAZOR 350 unit)
- Dimensions: 595x280x440mm
- Weight: 43kg
- SWF Dimensions: 630x235x420mm
- SWF Weight: 14kg
- SWF Interlocking Cable Length: 10 metres
Machine Features
- Wire Drive: Separate 4 geared
- VRD: Yes
- Spool gun connection: Yes
- Push/Pull Gun Connection: Yes
- Burn back Adjustment: Synergic
- Wire inch: Yes
- Inductance control: yes
- Crater current control: Yes
- Thermal Overload Protection: Over Temperature Warning
- Air Arc Gouging
MIG Specifications
- Current Range: 50 to 500 A
- Welding Thickness: 1 to 30 mm
- Duty Cycle: 60% @ 500 A
- Wire Size: 0.6 to 1.6 mm
- Wire Spool Size: 5kg / 15 kg
- Drive Roller size: 30/22 X 2
TIG Specifications
- DC Lift Arc
- Current Range: 20 to 500 A
- Duty Cycle: 60% @ 500 A
- Welding Thickness: 2 to 10 mm
Stick Welding Specifications
- Current Range: 20 to 500 A
- Duty Cycle: 60% @ 500 A
- Electrode range: 2.5 to 6.0 mm
- Welding Thickness: 3 to 20 mm
