Miller Arc Reach Wire feeder
MAKE: MILLER
MODEL: ARC REACH WIRE FEEDER
In Stock and available for shipping
Tough, rugged and perfect for on-the-go jobs

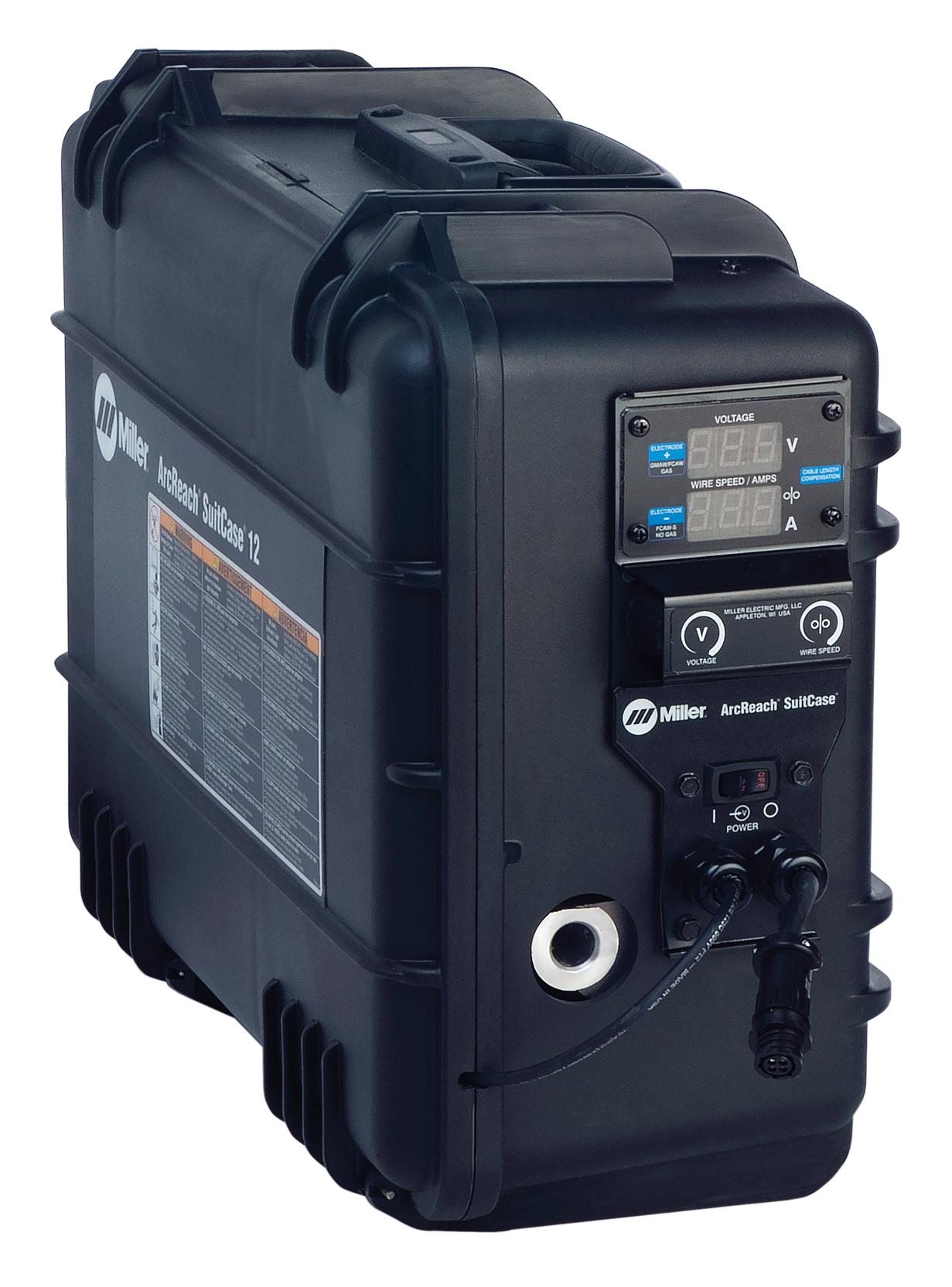

Needing a portable, powerful and well-designed wire feeder suitable for rough construction sites and on-the-go work? Introducing the ArcReach Suitcase 12. Designed to look like a suitcase, this heavy-duty wire feeder looks like something out of a spy movie. Specifically made for welding applications that need to feed 3/32 inch wire, the ArcReach Suitcase 12 sets the standard for performance. With tachometer control on its heavy-duty drive motor, the Miller ArcReach Suitcase offers operators wire feed speed accuracy and consistency from start to finish, providing consistent arc quality.
The Miller ArcReach Suitcase 12 is highly regarded for its extreme reliability. Everything about this wire feeder has been designed to withstand the harshest environments. Its circuit board has full-trigger isolations, ensuring that a shorted gun trigger will never affect the feeder, and the gun locking tab prevents guns from being pulled out when the feeder is being dragged by the gun. Overall, if you need a wire feeder that can go the distance, then the ArcReach Suitcase 12 is a great choice.
Miller Arc Reach Wirefeeder Specifications
Voltage and OCV
- 14–48 VDC / 110 max. OCV
Input Welding Circuit Rating
- 425 A at 60% duty cycle
Wire Feed Speed
- 50–780 ipm (1.3–19.8 m/min.)
Wire Type and Diameter Capacity
- Solid wire: .023–.052 in. (0.6–1.4 mm)
- Flux-cored: .030–5/64 in. (0.8–2.0 mm)
Max. Spool Size Capacity
- 12 in. (305 mm)
- 45 lb. (20 kg)
Dimensions
- Height: 15.5 in. (394 mm)
- Width: 9 in. (229 mm)
- Depth: 21 in. (533 mm)
Weight
- 15.9 kg
Miller Arc Reach Wirefeeder Features
The Miller Arc Reach Wirefeeder range has some innovative features that’ll benefit your work process and production rate, promising reliability, durability, and quality on any job site. Here are a few features of the Miller Arc Reach Wire Feeder Suitcase 12:
Built-In Arc Control
With built-in arc control, the Miller ArcReach Suitcase 12 is specifically designed to tackle one of the most common and frustrating challenges for most welders: electrode sticking. For traditional welding machines, operators have to set their parameters perfectly to avoid sticking. By integrating the electrode compensation circuit, the built-in arc control ensures that you’ll get consistent arc control performance all the time.
Set Volt & Wire Feed Speed Remotely
The Miller ArcReach takes welding to the extreme by allowing welders to set voltage and wire speed remotely, a feature designed to boost production efficiency. This feature enables operators to change their welding parameters at the point of use for more accuracy, removing the need for control cords and reducing setup time. In addition to boosting efficiency, eliminating feeder control cords also makes this wire feeder more convenient and safer for harsh environments.
More Jobsite Productivity & Efficiency
Designed to improve job site productivity, the Miller ArcReach has several features that make it a pleasure to work with. Its easy process changeover makes switching processes simple. All you need to do is connect the Miller ArcReach wire feeder to your weld lead, and it’s ready to go. Its power source will automatically change the setting to run conventional wire processes. In addition to this, the Miller ArcReach is also versatile, allowing you to add traditional wire processes like adding the flux-cored capabilities of the XMT 350 FieldPro for fill and cap passes.
Miller Arc Reach Wirefeeder Applications
- Shipbuilding
- Construction
- Heavy manufacturing
- Rental
Miller Arc Reach Wirefeeder Processes
- Flux Cored (FCAW)
- MIG (GMAW)
- Pulsed MIG (GMAW-P)
*With optional ArcReach Smart Feeder
FAQs
Can I save my welding settings on the ArcReach Wire Feeder?
Unfortunately not. While the Arcreach Wire feeder range does allow operators to change settings easily and remotely, you will still need to set them every time you weld.
Can I use the ArcReach Wire Feeder for aluminum welding?
Yes, the Arcreach Wire feeder can be used for aluminium welding. it just needs to be equipped with the correct drive rolls and gun setup, and you’re good to go.
What is the top wire speed feed of the Miller Arc Reach Wirefeeder?
The Miller Arc Reach Wire feeder has wire speeds of between 50–780 ipm, with 780 being its fastest setting.
How much does a Miller Arc Reach Wirefeeder weigh?
Weighing 15.9kg, the Miller Arc Reach Wire feeder is easy to carry and perfect for on-site operations and for usage on the go.
