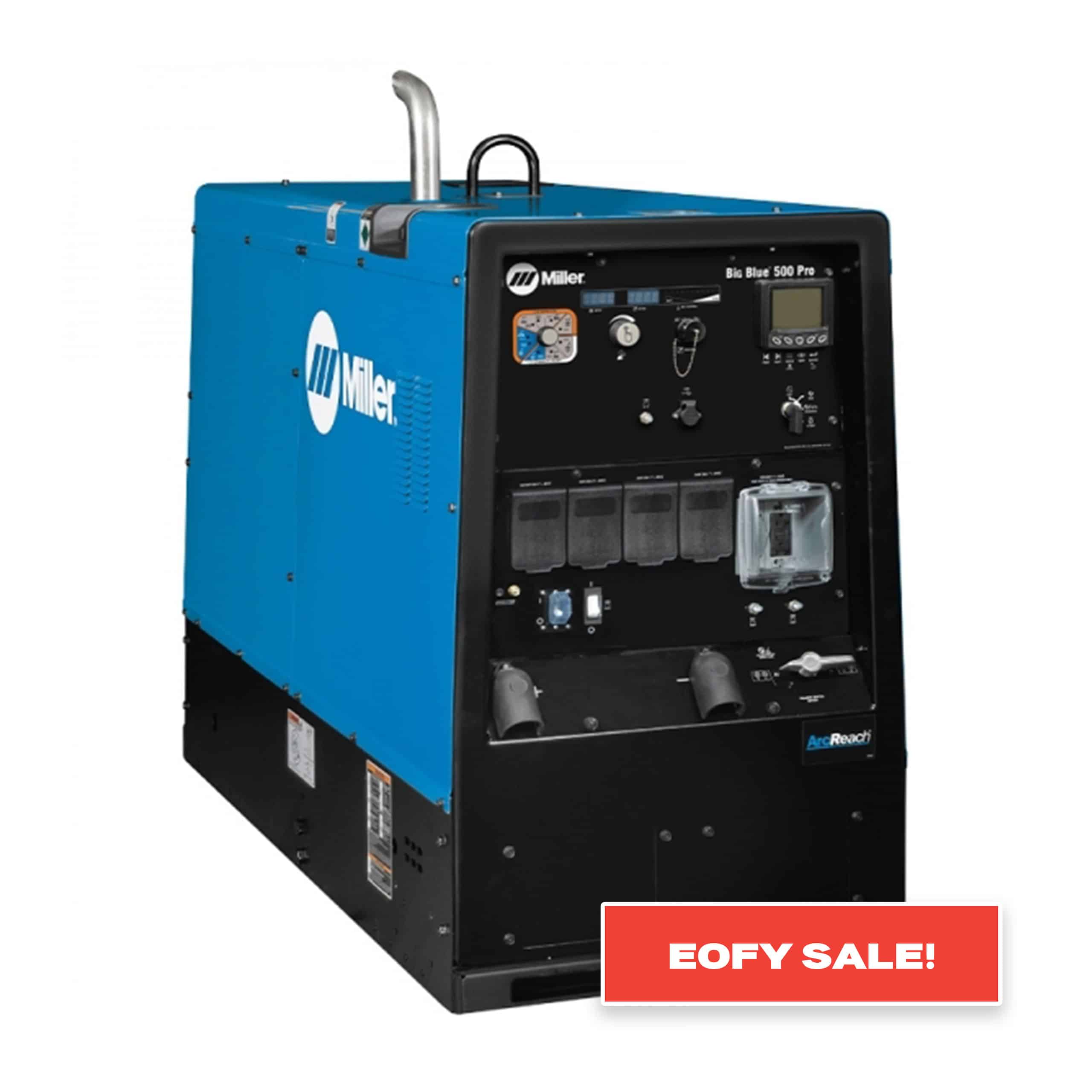

Miller Big Blue 500x PRO

MAKE: Miller

MODEL: Miller Big Blue® 500x Pro Diesel Welder

In Stock and available for shipping

Affordable high output for 90% of mobile welding. Super reliable.

Experience unmatched ease, reliability, and fuel economy with the professional-grade Miller Big Blue 500x Pro with ArcReach®. Powered by a heavy-duty Deutz engine.  This welder features ArcReach® technology, allowing precise weld adjustments right at your fingertips. More time welding, less time walking.

The Miller Big Blue 500x Pro has enough power and portability to cover up to 90% of welding jobs in the field making the 500X PRO the economical alternative to diesel welders that are way more expensive, larger, heavier, and burn more fuel.

Boasting a variety of advanced features, including Adaptive Hot Start™, Infinite arc control, and Auto-Process Select™, this welder truly stands unrivaled in its class.

PLUS the Miller Big Blue 500x Pro provides 415v 3-phase and 240 volt single-phase auxiliary power (21 kW peak and 15 kW continuous) to power other tools and equipment.

Miller Big Blue 500x Pro
– now a RENTECA standard stocked unit – no waiting weeks for overseas delivery. We have units right here in Australia.

Miller Big Blue® 500x PRO Specifications

Title: Miller Big Blue® 500X Pro (Deutz) ArcReach®

Industries Interests: Heavy Construction, Structural Steel, Maintenance and Repair Rigs, Process Piping

Amperage: 20 A – 500 A

Weldable Metals: Stainless Steel, Steel

Rated Carbon Diameter: 5/16-inch (8 mm)

Current Type: DC

Max Open Circuit Voltage: 92 VDC, 30 VDC

Portability: Lift Eye (Standard) | Trailer (Optional)

Cold Weather Starting Aids: Engine Block Heater, Glow Plugs

Engine Brand: Deutz

Engine Compliance: T4F

Engine Idle Speed: 1350 RPM

Engine Weld Speed: 1800 RPM

Fuel Tank Size: 95 Litres

Fuel Type: Diesel

Horsepower: 32 hp

Weld Output: CC / CV / DC

Rated Output: 500 A at 30 volts, 40% Duty Cycle, 450 A at 33 volts, 60% Duty Cycle, 400 A at 36 volts, 100% Duty Cycle

Single Phase Auxiliary Power: 4000 W continuous

Three Phase Auxiliary Power: 21,000 watts PEAK, 15,000 watts continuous

Sound Rating: Idle: 63 dB, Weld: 72.2 dB

Applications: Heavy Construction, Structural Steel, Maintenance and Repair Rigs, Process Piping

Width: 724 mm

Height: 1067 mm (1258 mm) incl exhaust

Length: 1654 mm

Net Weight: 694 kg

Warranty: 3 Years Miller’s True Blue Warranty

Miller Big Blue 500X PRO Features

ArcReach® Technology

Equipped with exclusive ArcReach® technology, this feature allows process adjustments right from your weld cables, placing arc control beneficially at your fingertips. Ideal for both stick and solid wires, ArcReach ensures you’re no longer tied to the power source – a testament to the product’s superior convenience and reliability.

ArcReach Heater Compatibility

Assert control and efficiency in your preheating applications with the 400x Pro’s ArcReach Heater. Capable of reaching up to 600 degrees Fahrenheit (315°C), this system uses induction heating for quick, safe preheating. As part of the ArcReach technology platform, this heater is a beneficial accessory that provides soft tig arc starting.

Auto-Process Select™

Enhance your workflow with the 500x Pro’s Auto-Process Select™. This feature intuitively detects and switches to the correct process based on polarity and the connected ArcReach accessory, reducing the need to manually access the power source.

Advanced Features for the Professional Welder

The 500x Pro’s advanced features, including Adaptive Hot Start™, make starting stick electrodes a breeze. Benefit from infinite arc control in Stick and Wire modes, making arc control beneficial when fine-tuning tough-to-weld materials and out-of-position applications.

The Lift-Arc™ TIG feature minimises contamination risk during arc starting without requiring high frequency.

Control Panel Lock Out

There’s nothing to worry about accidental changes with its Control Panel Lock Out feature. It ensures that while an ArcReach accessory is in control, all process and amperage/voltage adjustments at the power source are securely locked out, preventing any unintentional alterations by non-operating personnel. This feature is your guarantee of absolute reliability and precision in every welding operation.

Dynamic DIG™

Expect a smoother, more consistent arc with Miller’s proprietary Dynamic DIG™. Compared to traditional DIG with preset short-clearing current, Dynamic DIG™ utilises a time-based algorithm to automatically adjust the required current to clear a short. This means you get an adaptable arc that can be customised to match the material, welder technique, application, and fit-up.

Fleet Compatibility

  • Cross Platform Compatible: This ensures that ArcReach accessories used on engine-driven equipment are also compatible with select ArcReach-equipped XMT®, Dimension™, and PipeWorx 350 FieldPro™ power sources.
  • Reverse Compatible: Reverse compatibility guarantees that ArcReach-equipped power sources work efficiently with non-ArcReach accessories, although full benefits are realised with the complete ArcReach system.

Heavy-Duty Low-Speed Deutz D2011 L03i Industrial Diesel Engine

More run hours mean more productivity with the heavy-duty, low-speed Deutz three cylinder oil cooled industrial diesel engine. Trusted in global industrial applications, engineered to provide hours of operation before major maintenance – backed by world-class service and support.

Increased Productivity & Safety

Complete your projects faster and safer with ArcReach. It significantly increases arc-on time and minimises the risk of trips, slips, and falls. With ArcReach, there’s less need to return to the welding power supply for process adjustments and arc amperage or voltage settings, boosting efficiency and safety.

Industrial USB Port

Conveniently keep your Miller Big Blue Pro 500x up-to-date and monitor its performance with the industrial USB port. You can download machine log files and perform software updates easily, offering valuable insights into diagnostics and machine statistics.

Other Standard Features

You can also enjoy features like automatic idle, cold weather starting aids, and thermal overload protection, enhancing the Miller Pro 500x’s reliability and efficiency.

Miller 400x PRO Applications

  • Construction
  • Fabrication
  • Maintenance
  • Mechanical contractors
  • Pipe welding
  • Rental
  • Repair
  • Structural steelwork



Miller Big Blue 500X PRO Processes

  • Stick (SMAW)
  • MIG (GMAW)
  • Flux-Cored (FCAW)
  • RMD*
  • Pulsed MIG* (GMAW-P)
  • DC TIG (GTAW)
  • Air Carbon Arc (CAC-A)
    5/16-inch (8 mm) Carbons

*With optional ArcReach Smart Feeder

Miller Big Blue Pro 500X FAQs



For further further information, please contact your RENTECA Technical Sales Representative.
