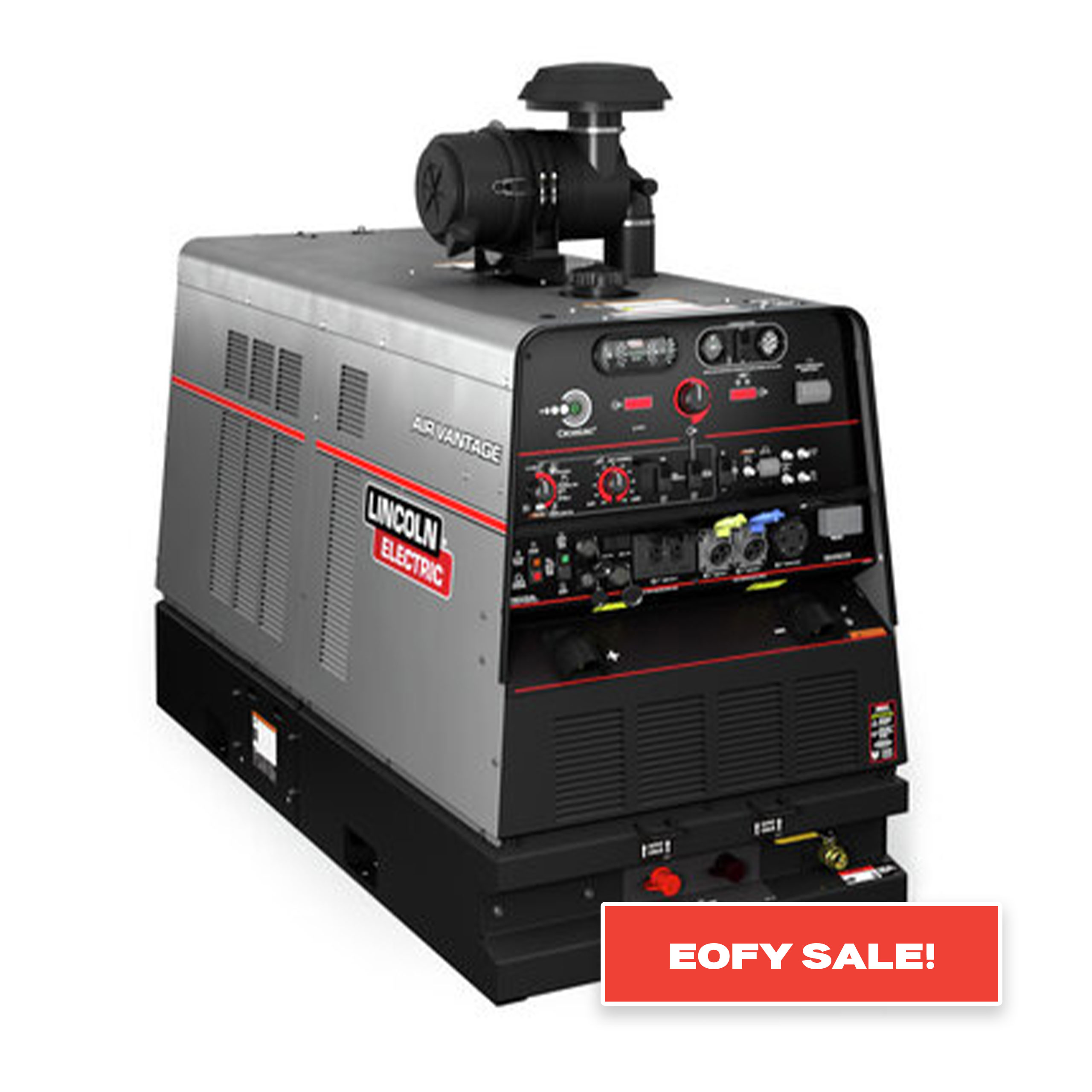

USED Lincoln air vantage 600-I diesel welder
MAKE: Lincoln
MODEL: Air Vantage 600-I
In Stock and available for shipping
EOFY SALE $42,450 + GST
3 months warranty included.
The Lincoln Electric Air Vantage® 600-I is a high-performance, diesel-powered, multi-process welder designed for demanding industrial applications such as mining, construction, heavy equipment repair, and pipeline maintenance. The Lincoln Air Vantage® 600-I combines robust welding capabilities, reliable power generation, and integrated air compression in a single, durable unit, making it an ideal choice for professionals requiring versatility and performance in challenging environments.
Specifications
-
Welding Output Range:
-
CC-Stick: 30–600 Amps
-
Downhill Pipe: 40–350 Amps
-
Touch Start TIG: 20–350 Amps
-
CV-Wire: 10–45 Volts
-
Arc Gouging: 60–600 Amps
-
-
Open Circuit Voltage: 60V (Max)
-
Fuel Tank Capacity: 94.6 liters
-
Dimensions (H x W x D): 1067 mm x 836 mm x 1753 mm
-
Weight: Approximately 787 kg
Key Features
-
High Welding Output: Delivers up to 600 amps of DC welding current, with an IEC-rated 575A at 43V for 100% duty cycle.
-
Multi-Process Capability: Supports Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), TIG (GTAW), and carbon arc gouging processes.
-
Integrated Air Compressor: Features a belt-driven VMAC® rotary screw compressor providing 60 cfm at 100 psi, eliminating the need for separate air equipment.
-
Auxiliary Power Generation: Offers 20 kW of continuous three-phase power (240V) and 7.2 kW of single-phase power (120/240V), suitable for running industrial tools and inverter welders.
-
Advanced Arc Control: Equipped with Lincoln’s patented Chopper® Technology for minimal spatter and enhanced arc performance, and CrossLinc® Technology for remote voltage control without additional control cables.
-
Durable Design: Built with stainless steel panels, encapsulated GFCIs, and potted PC boards for enhanced protection against harsh environments.
-
Powerful Engine: Powered by a 65.7 hp turbocharged Deutz® TD2.9L4 diesel engine, compliant with EPA Tier 3 standards, ensuring reliable performance and fuel efficiency.
Applications
-
Heavy Equipment Repair
-
Energy Utility Maintenance
-
Construction Projects
-
General Fabrication
-
Mining Operations
