Air Vantage 600x PLUS Special Offer
An unbeatable
high-powered package
The Air Vantage 600x PLUS diesel welder paired with the LN-25x Wire feeder delivers up
to 600A of welding power with full remote control from the wire feeder. Supports MIG and
Stick, Flux-Core welding processes ideal for heavy industrial applications such as pipelines,
structural steel fabrication, and shipbuilding.
.
.
.
.
The Ultimate On-Site Machine
The Air Vantage® 600X Plus is a powerful multifunction machine that offers up to 600 amps of IEC rated welding output, 20kW 415V / 240V 50Hz of auxiliary power, and 60 cfm of compressed air in a single package. This is a 3-in-1 workhorse, designed to meet the most challenging job site needs and environments.
The rugged Air Vantage 600X Plus can handle a challenging assortment of tasks from heavy-duty carbon arc gouging to pulse welding. Now better than ever, the machine features CrossLinc® Technology to provide welders with greater control at the arc to help –––improve safety, productivity, and weld quality.
- 600A 40% – 575A 60% – 525 100% Duty Cycle @ 40°C with 100PSI/60CFM.
- 50Hz Auxiliary 415V (32A) & 240V (15A) x2 – Mine Site Ready.
- Equipped with a 65.7 HP, Turbocharged Deutz® Diesel Engine.
- Integrated 100PSI/60CFM Full Flow, VMAC® Belt Driven Rotary Air Compressor.
Complete system control, with no control cables

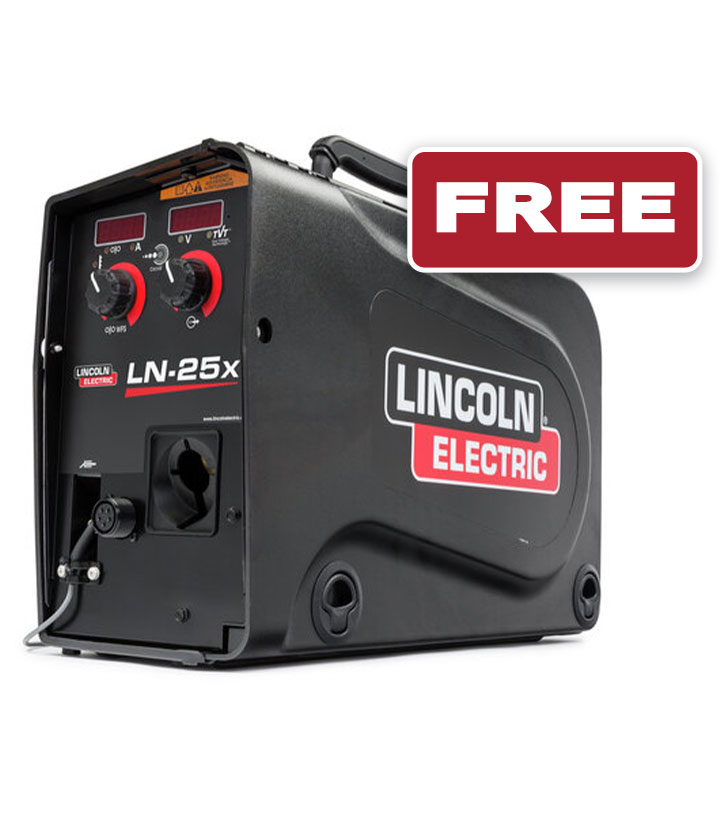

The LN-25x uses the Air Vantage 600x PLUS as a power source. The LN-25x provides full remote control of the welding power being delivered through the Lincoln CrossLinc system. Automatic voltage drop compensation for long cable runs. The LN-25x supports Stick, MIG and Flux-Cored processes.
CROSSLINC™ TECHNOLOGY: SOLVING SITE WELDING ISSUES
CrossLinc™ Technology enhances worker safety, weld quality, productivity, and equipment reliability in site welding. Traditional portable wire feeders either lack voltage control at the point-of-use or require costly, complex control cables. CrossLinc™ offers a better solution by eliminating these issues.
Features
- CrossLinc technology provides voltage control on the feeder when paired with a CrossLinc compatible power source. No control cables are needed.
- TVT compensates for voltage drop across long weld cable lengths, allowing you to weld with the voltage you set at the feeder
- Included Tweco® or Twistmate®(Dinse®) input power connection. Flowmeter and non-flowmeter models available.
- Portable and light weight field construction wire feeder
